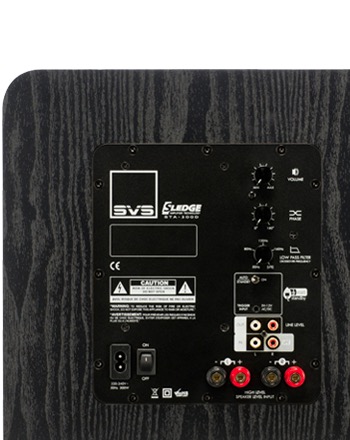

The Sledge STA-300D amplifier packs technology and sophistication simply not found anywhere else at this price point. Conservatively rated at 300 watts (720 watts peak dynamic).
This amp features a highly advanced DSP processor offering unmatched control over the subwoofer at all drive levels, for the ultimate in refined behaviour.The control knobs are actually digital actuators for precise and noise-free adjustment.
Comprehensive and flexible connectivity options allow for easy set-up and integration into any home theatre or stereo system.
Amplifier Specs:
•Sledge STA-300D with 300 watts RMS continuous power (720 watts peak dynamic power).
•Efficient and cool-running Class D topology.300 watts (720 watts peak dynamic).
•Green standby mode with less than 0.5 watts consumption.
•Detachable power cord with main power switch.
•RoHS compliant, lead-free construction and world-wide safety certifications.Auto-On / On switch.
•DSP control for accurate response and refined behaviour under all operating conditions.
•Stereo line-level RCA Input & 80Hz High Pass Filtered Output connections.
•Stereo speaker level 5-way binding post input connections.
•Continuously variable low pass filter frequency with disable/LFE setting.
•Continuously variable volume and phase controls.Input impedance - 47 kΩ (unbalanced RCA) / 2 kΩ (speaker level)
SVS 12” HIGH PERFORMANCE DRIVER: DESIGNED TO PERFORM
With SVS, compact and affordable doesn’t mean compromising on performance.
The 12” driver in the SB-1000 pumps out loads of deep and powerful bass with low distortion, for smooth and accurate performance on music and movies.
Driver Specs:
•FEA-optimised motor technology for low distortion.
•Long-throw suspension for high output at deep frequencies.
•High-power voice coil for excellent thermal management.
•Lightweight 12" cone for enhanced sensitivity and transient response.
•Rubber surround for durability and long-life.
•Dual high-grade ferrite magnets.
•Vented pole piece for greater cooling and low noise.
CABINETS BUILT TO COMPLEMENT: RIGID CONSTRUCTION FOR SOUND ACCURACY
All of our subwoofer cabinets are built to be strong, rigid and resonance free, so when you listen, you hear our subwoofers, not our cabinets.
Subwoofer Specs:
•Premium black ash, piano black and piano white finish options.
•Front-firing 12" driver.
•Rigid and strong cabinet construction.
•Detachable power cord.
•Cabinet Dimensions HxWxD in mm (inch): 343 (13.5”) x 330 (13”) x 356 (14”) (without grille).
•Overall Dimensions HxWxD in mm (inch): 343 (13.5”) x 330 (13”) x 371 (14.6”) (with grille).
•Weight unboxed in KGS (LBS): 12.25 (27).
•Shipped Dimensions HxWxD in mm (inch): 483 (19”) x 457 (18”) x 457 (18”).
•Shipped Weight in KGS (LBS): 15.42 (34).

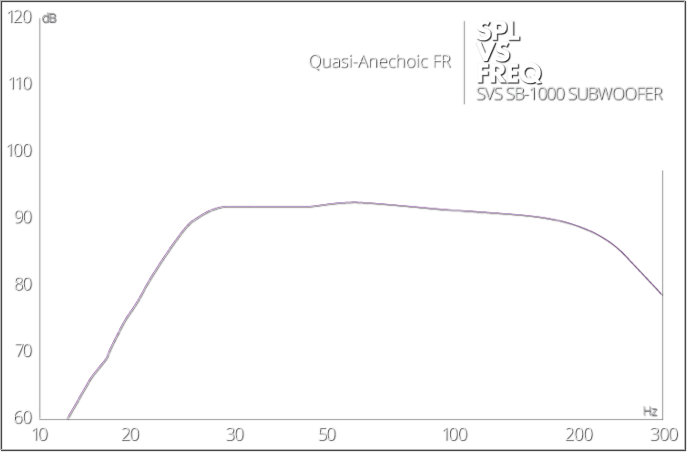

FREQUENCY RESPONSE / ACOUSTIC DATA:
**Frequency response graph does not denote maximum output capability.
•2-meter ground plane away from reflective structures (quasi-anechoic)
•24-260 Hz +/- 3 dB
