The Sledge STA-500D is the sonic engine that brings an unprecedented amp technology and sophistication not found anywhere else at this price point. On sheer power alone, it effortlessly punches out 500 watts RMS and 1100 peak watts.
The SB-2000 boasts smooth and precise digital signal processing at all drive levels, plus, flexible connectivity for ease of set up and seamless integration into all home theatre and stereo systems.
The all new SVS series 12” driver will have you reaching for the arm rests, yet, when the SB-2000 is not in use, the energy saving standby mode consumes less than 0.5 watts.
All told, the SB-2000 is a never before at this price sonic package.

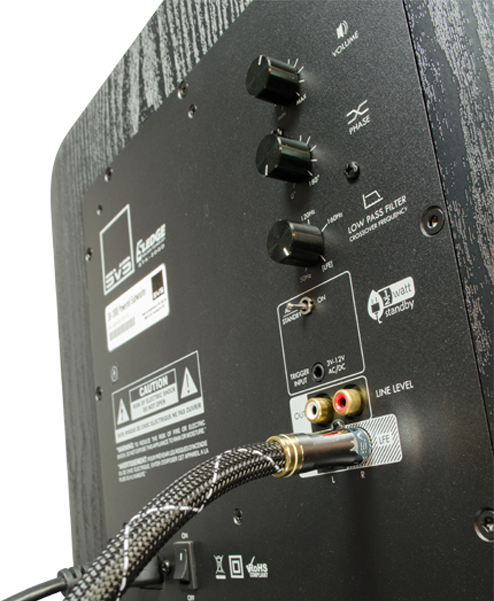

Amplifier Specs:
•Sledge STA-500D with 500 watts RMS continuous power (1100 watts peak dynamic power).
•Efficient and cool-running Class D topology.
•500 watts (1100 watts peak dynamic).
•Green standby mode with less than 0.5 watts consumption.
•Detachable power cord with main power switch.RoHS compliant, lead-free construction and world-wide safety certifications.
•Auto-On / On switch.3-12V trigger with 3.5mm TRS mini-jack input.
•DSP control for accurate response and refined behaviour under all operating conditions.
•Stereo line-level RCA Input & 80Hz High Pass Filtered Output connections.
•Stereo speaker level 5-way binding post input connections.Stereo line-level output connections.
•Continuously variable (50-160 Hz) 12 dB/octave low pass filter frequency with disable/LFE setting.
•Fixed 80 Hz 12 dB/octave high pass filter on line level outputs.
•Continuously variable volume and phase (0-180º) controls.Input impedance - 47 kΩ (unbalanced line level RCA)

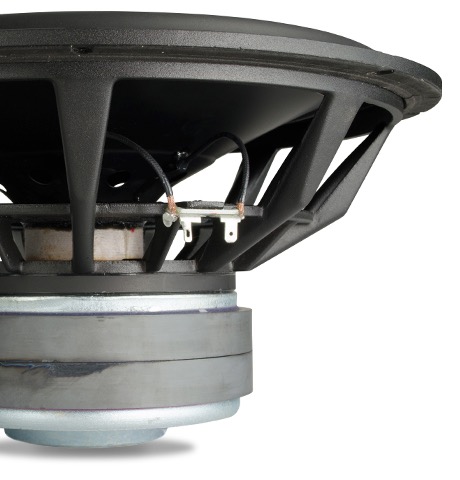

SVS 12” HIGH PERFORMANCE DRIVER: DESIGNED TO PERFORM
With SVS, compact and affordable doesn’t mean compromising on performance.
The 12” driver in the SB-1000 pumps out loads of deep and powerful bass with low distortion, for smooth and accurate performance on music and movies.
Driver Specs:
•New SVS 12” 2000-series driver.
•Powder-coated cast aluminium basket.
•Dual high-grade ferrite magnets.
•Finite Element Analysis (FEA)-optimised motor structure.
•Dual shorting rings reduce gap induction and lower distortion.
•Extended pole piece improves heat sink and thermal management properties.
•Upgraded Nomex spider for improved linearity and driver control at extreme drive levels.
•High-quality insulated tinsel leads with 3-point-contact precision alignment.
•Lightweight aluminium cone with polypropylene dust cap provides excellent rigidity and pistonic behaviour.Low-creep rubber long-throw surround for excellent durability and longevity.
CABINETS BUILT TO COMPLEMENT: RIGID CONSTRUCTION FOR SOUND ACCURACY
All of our subwoofer cabinets are built to be strong, rigid and resonance free, so when you listen, you hear our subwoofers, not our cabinets.
Subwoofer Specs:
•Premium black ash and piano black finish options.
•Front-firing 12" driver.Protective non-resonant steel mesh grille.
•Rear-mounted amplifier.Screw-in rubber feet.
•Robust Medium Density Fibreboard(MDF) cabinet construction.
•Overall Dimensions HxWxD in mm (inch): 371 (14.6”) x 361 (14.2”) x 434 (17.1”) (with grille).
•Weight unboxed in KGS (LBS): 15.78 (34.8).
•Shipped Dimensions HxWxD in mm (inch): 533.4 (21”) x 513 (20.2”) x 589 (23.2”).
•Shipped Weight in KGS (LBS): 23.15 (51).
FREQUENCY RESPONSE / ACOUSTIC DATA:
**Frequency response graph does not denote maximum output capability.
•2-meter ground plane away from reflective structures (quasi-anechoic).
•19-220 Hz +/- 3 dB
•Roll-off slope optimised to take maximum advantage of available room gain.
•Expect 4-5Hz deeper extension in small to mid-size rooms.
